Description

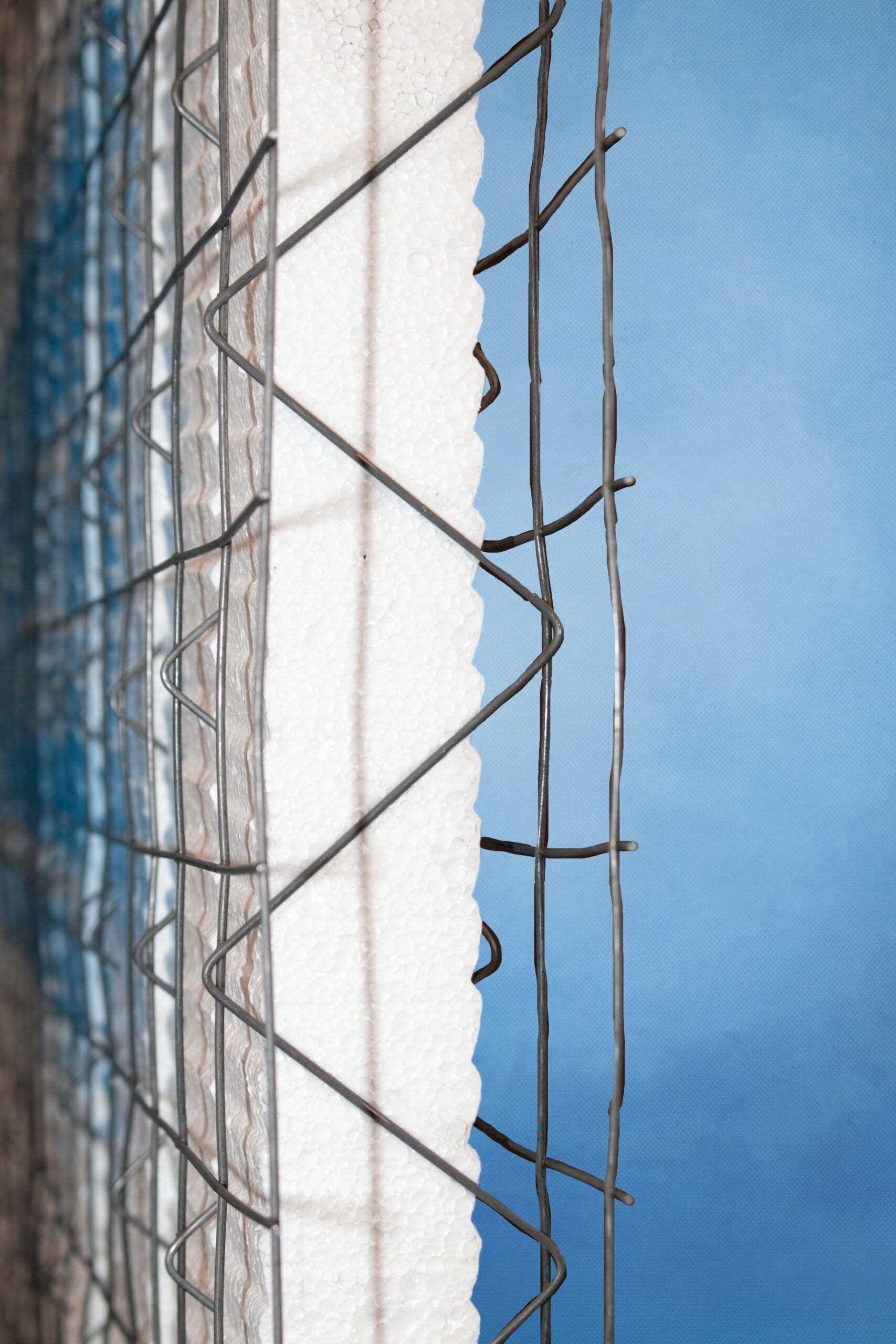

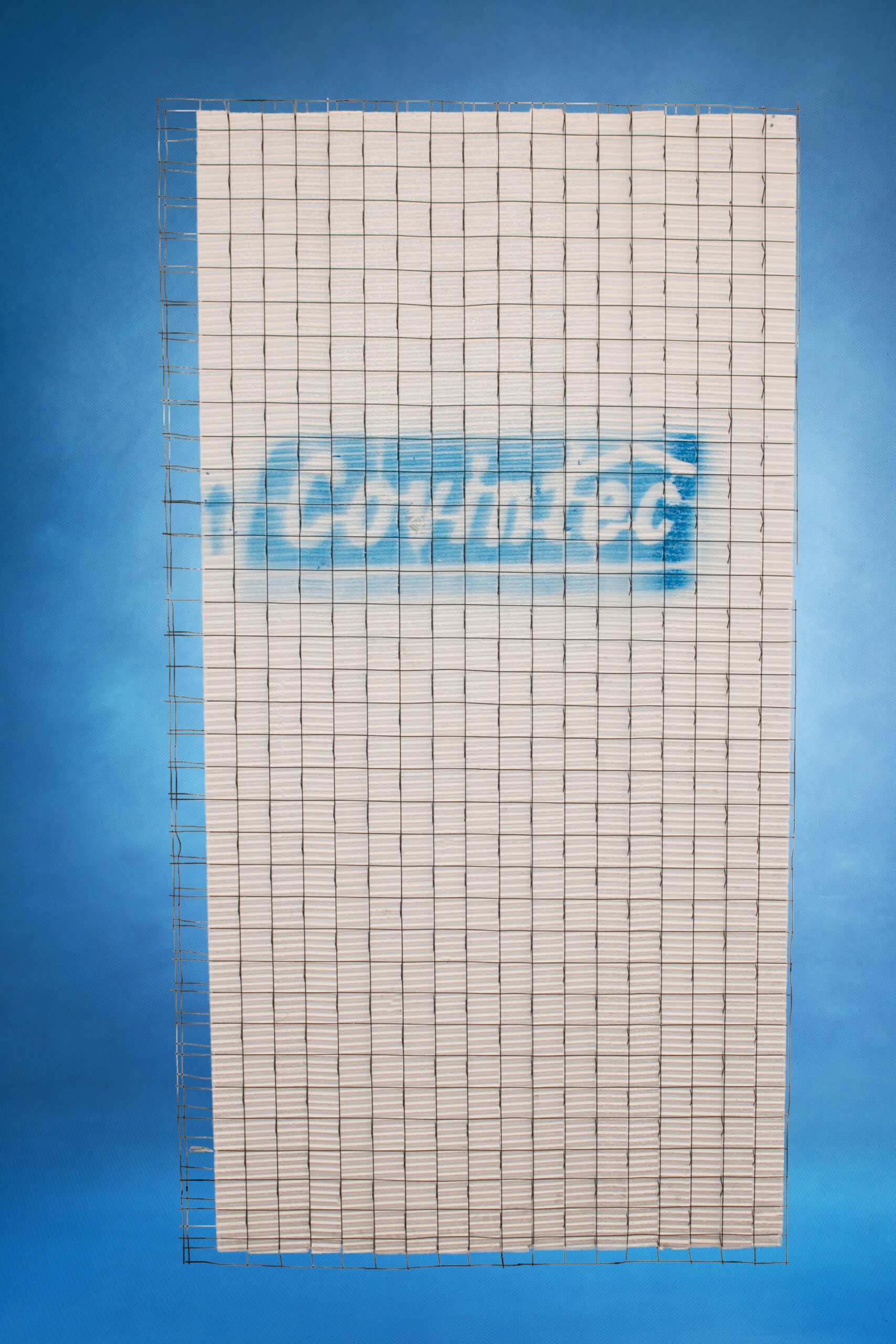

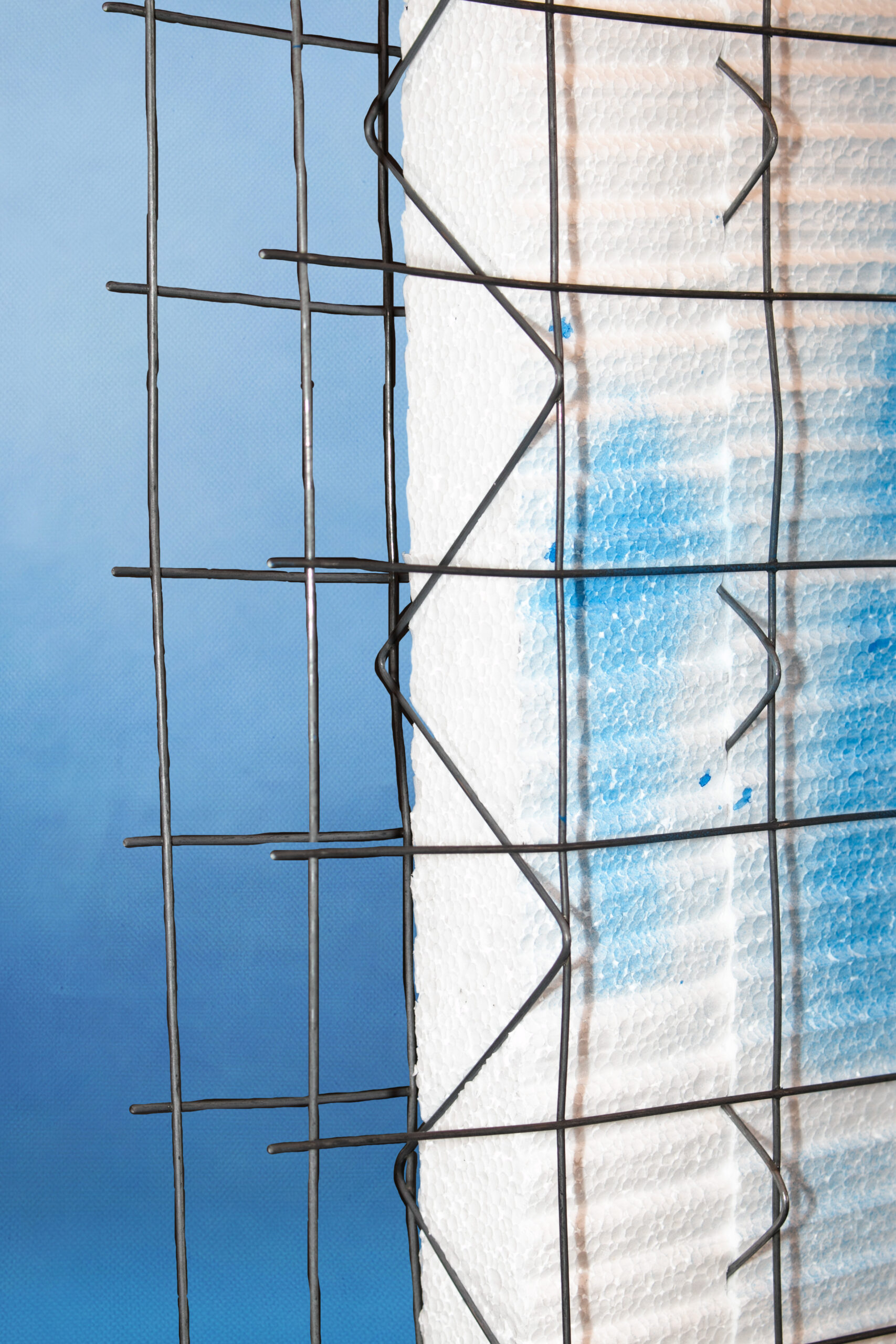

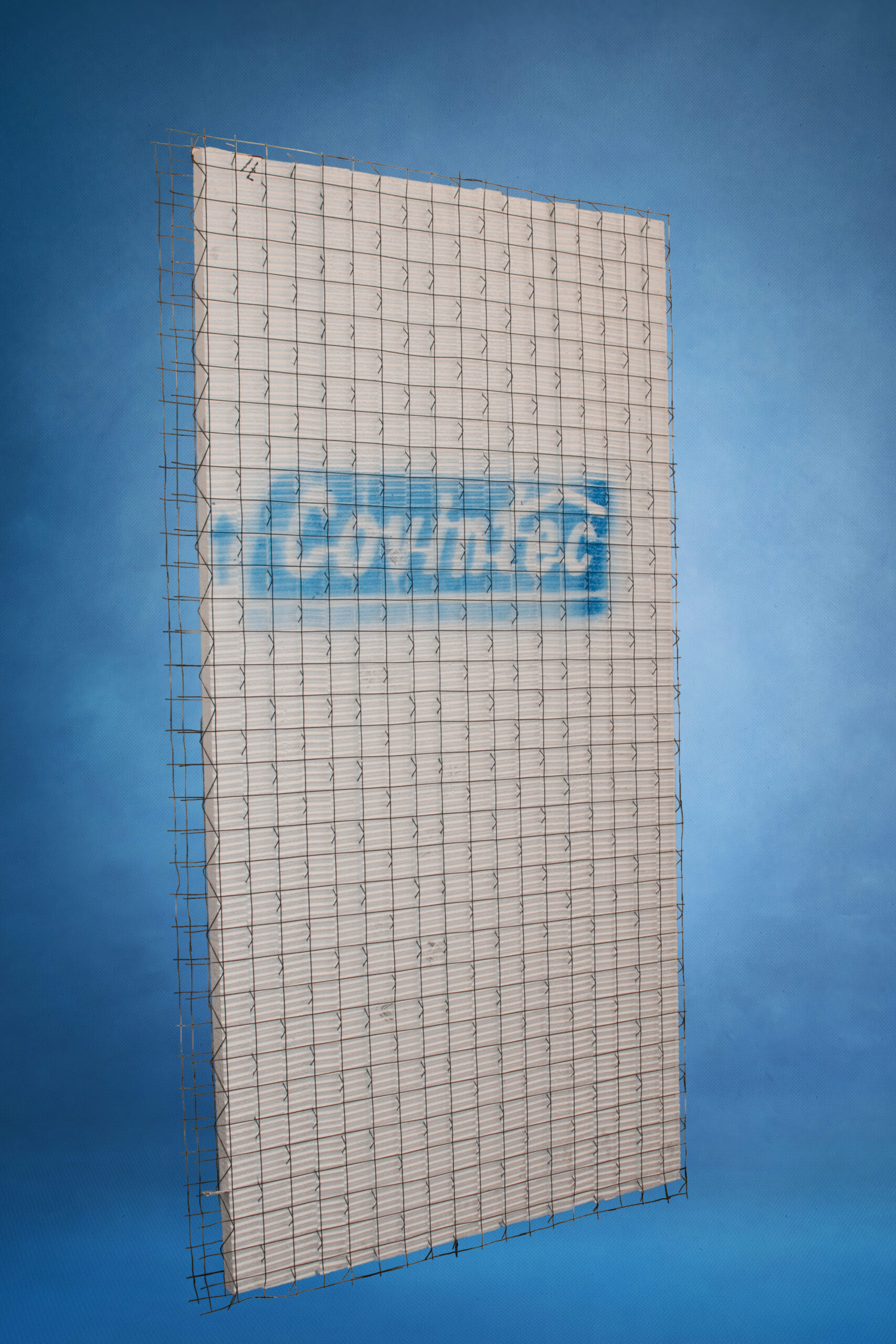

Covintec Premium It is a three-dimensional steel structure made of polished or galvanized high-strength steel wire, gauge # 14 (2.03 mm), electro-welded at each point of contact, composed of vertical reinforcements called ladders or Zig – Zag, gauge # 12 (2.69 mm) and an expanded polystyrene core is incorporated inside the reinforcements.
Product Features
Espesor: 3″
Broad: 1.22 m
High: 2.44 m
Mesh Separation: 7.62 cm
Reticle 5cm x 5cm
Unflattened Weight: 3.2 kg/m2
Polystyrene Thickness: 5.50 cm
Steel Caliber: 14
Vertical Steel Area: 2.43 cm2
Horizontal Steel Area: 3.24 cm2
EPS Density: 10 kg/cm3
