Description

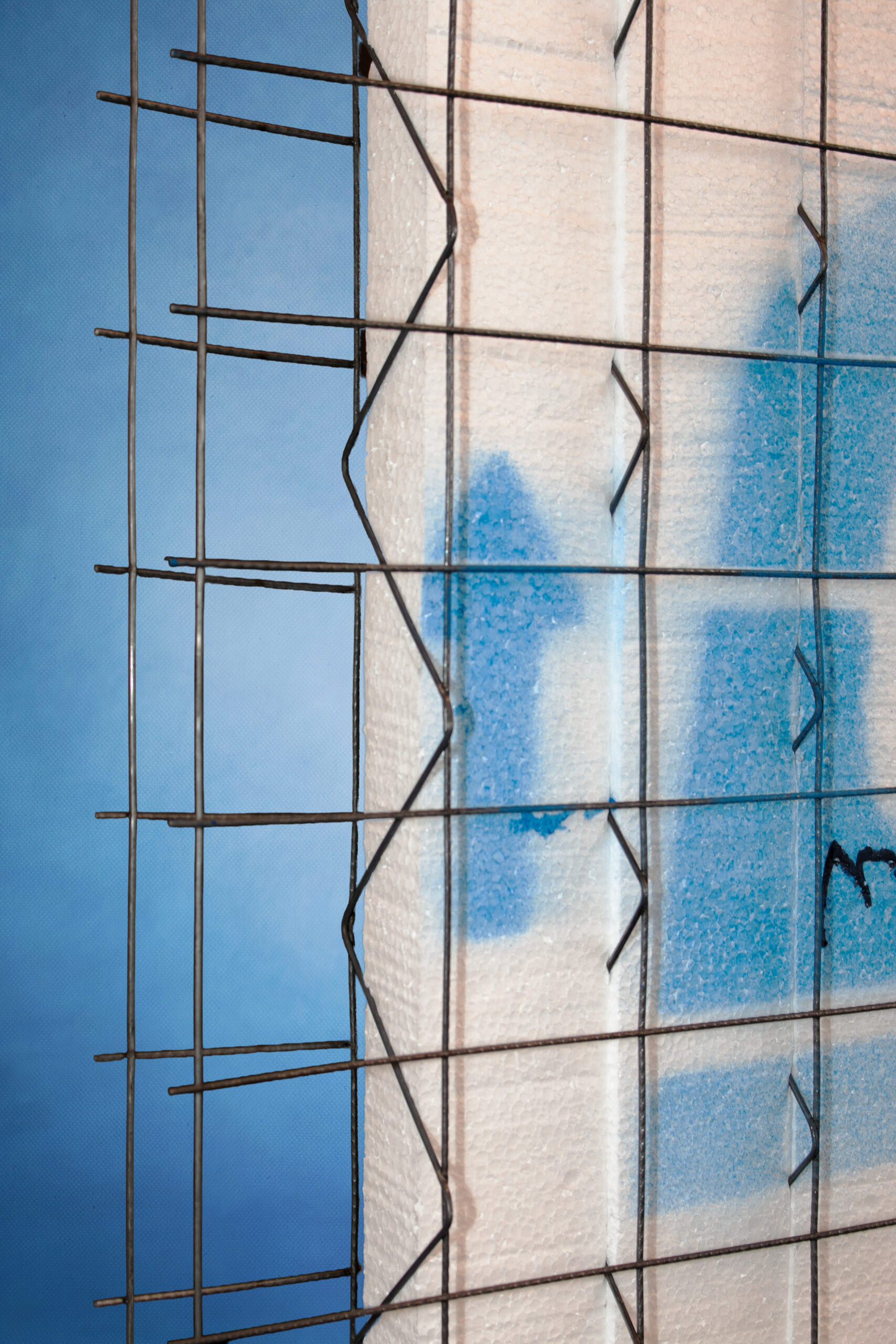

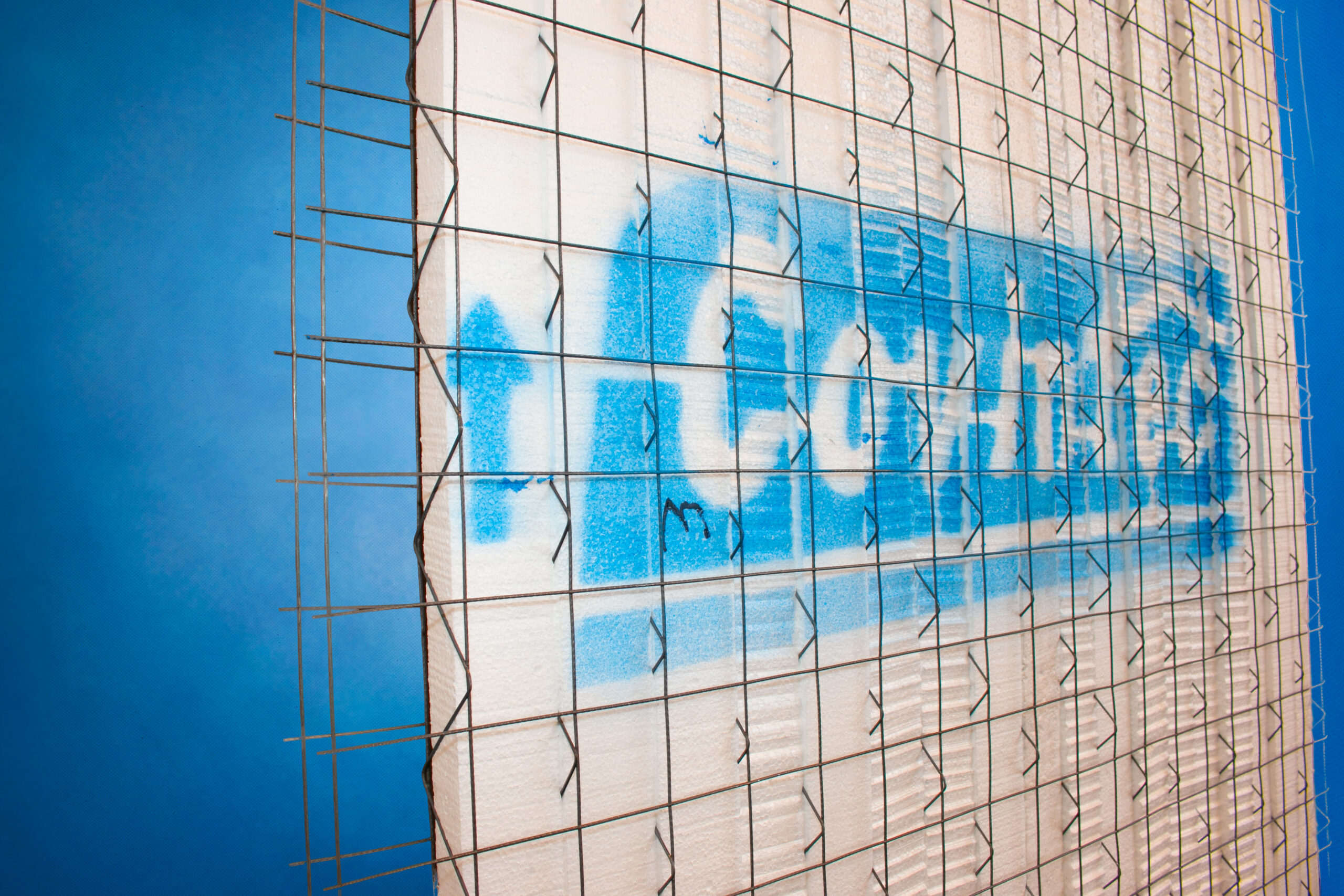

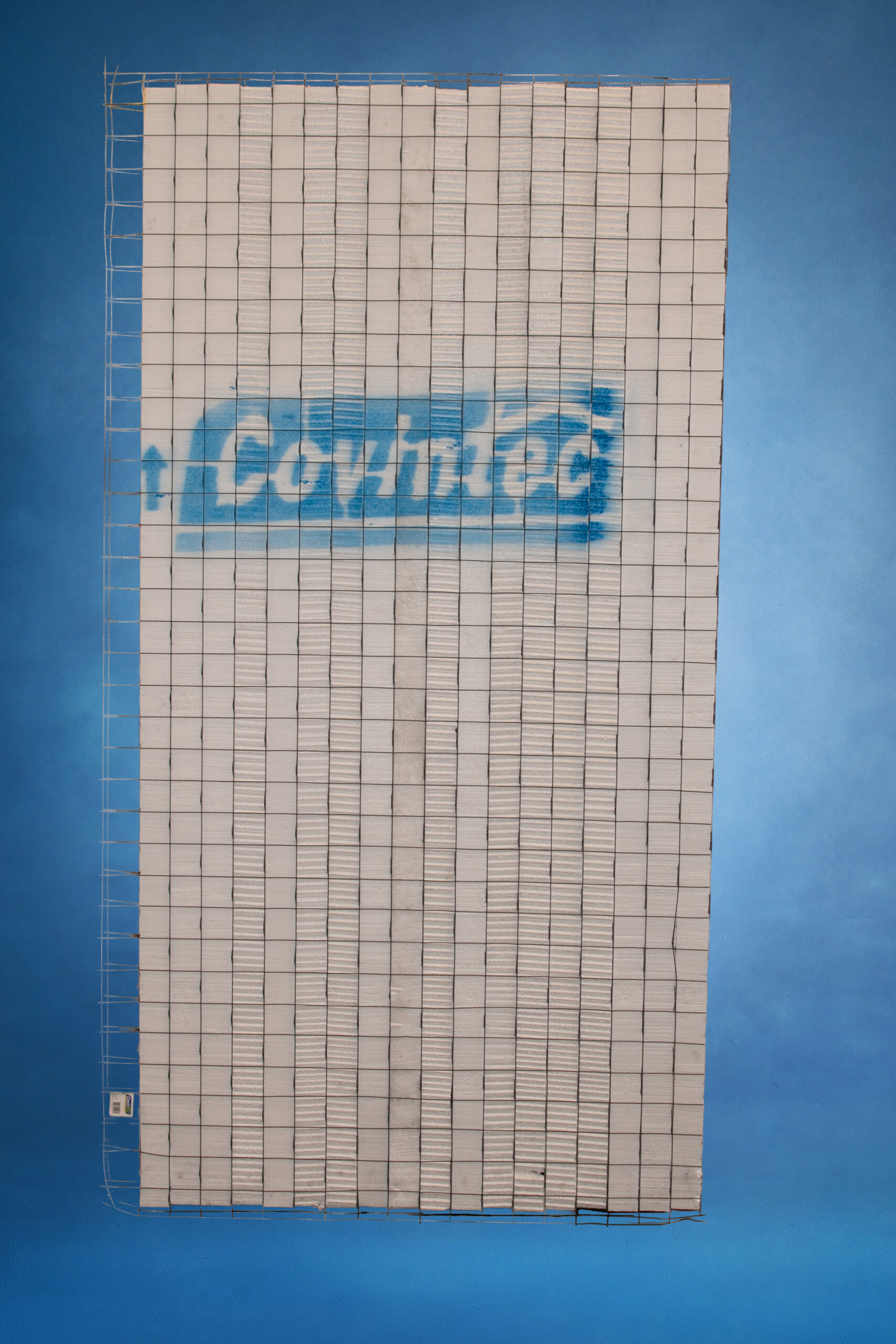

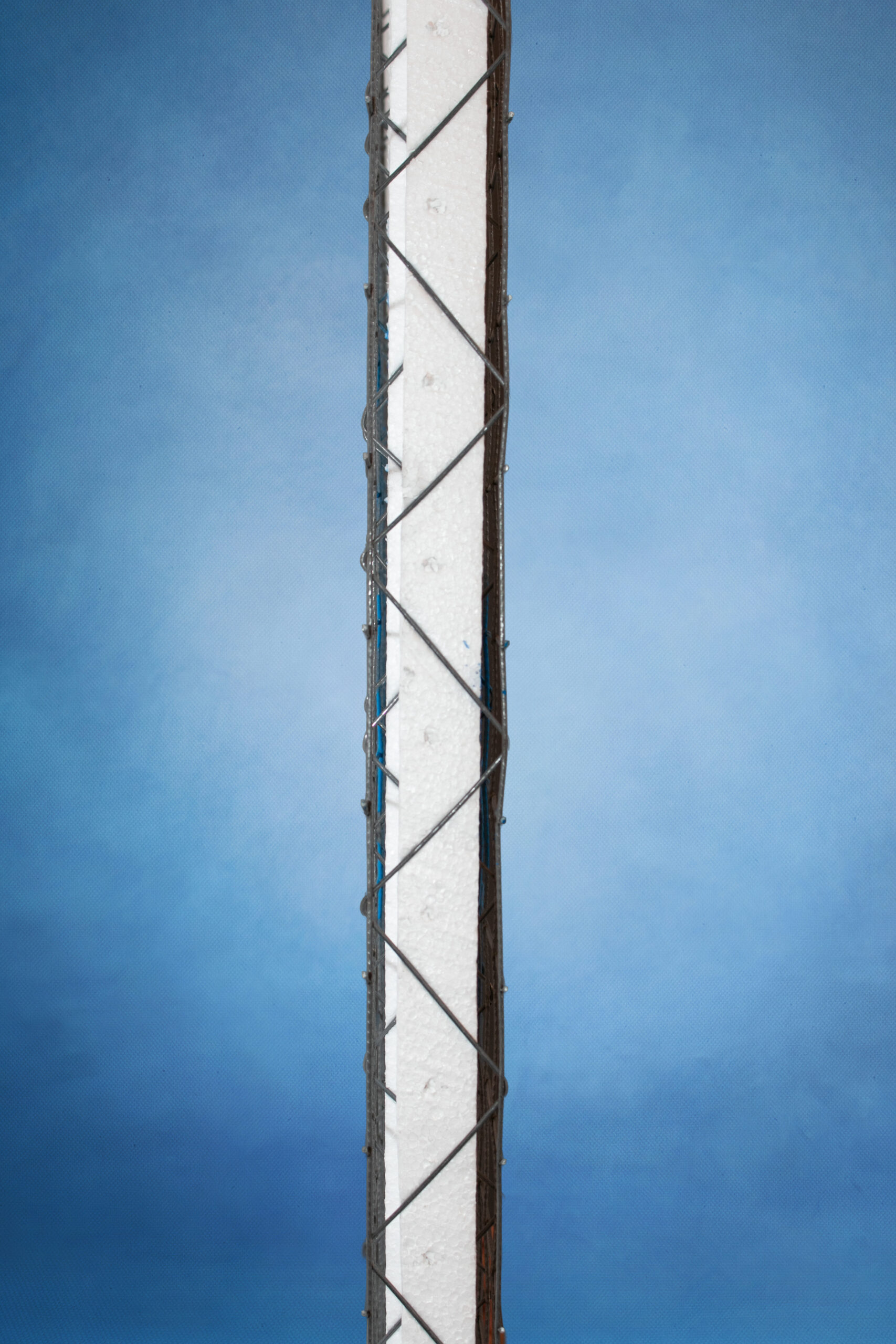

Qualypanel Covintec It is a three-dimensional steel structure made of polished or galvanized high-strength steel wire, gauge # 14 (2.03 mm), electro-welded at each point of contact, composed of vertical reinforcements called ladders or Zig – Zag, gauge # 12 (2.69 mm) and an expanded polystyrene core is incorporated inside the reinforcements.
Dimensions
Espesor: 2″
Broad: 1.22 m
High: 2.44 m
Mesh Separation: 5.08 cm
Reticle 5 x 5 cm
Unflattened Weight: 3.15 kg/m2
Polystyrene Thickness: 2.90 cm
Steel Caliber: 14
Area de Acero: 1.62 cm2
