Description

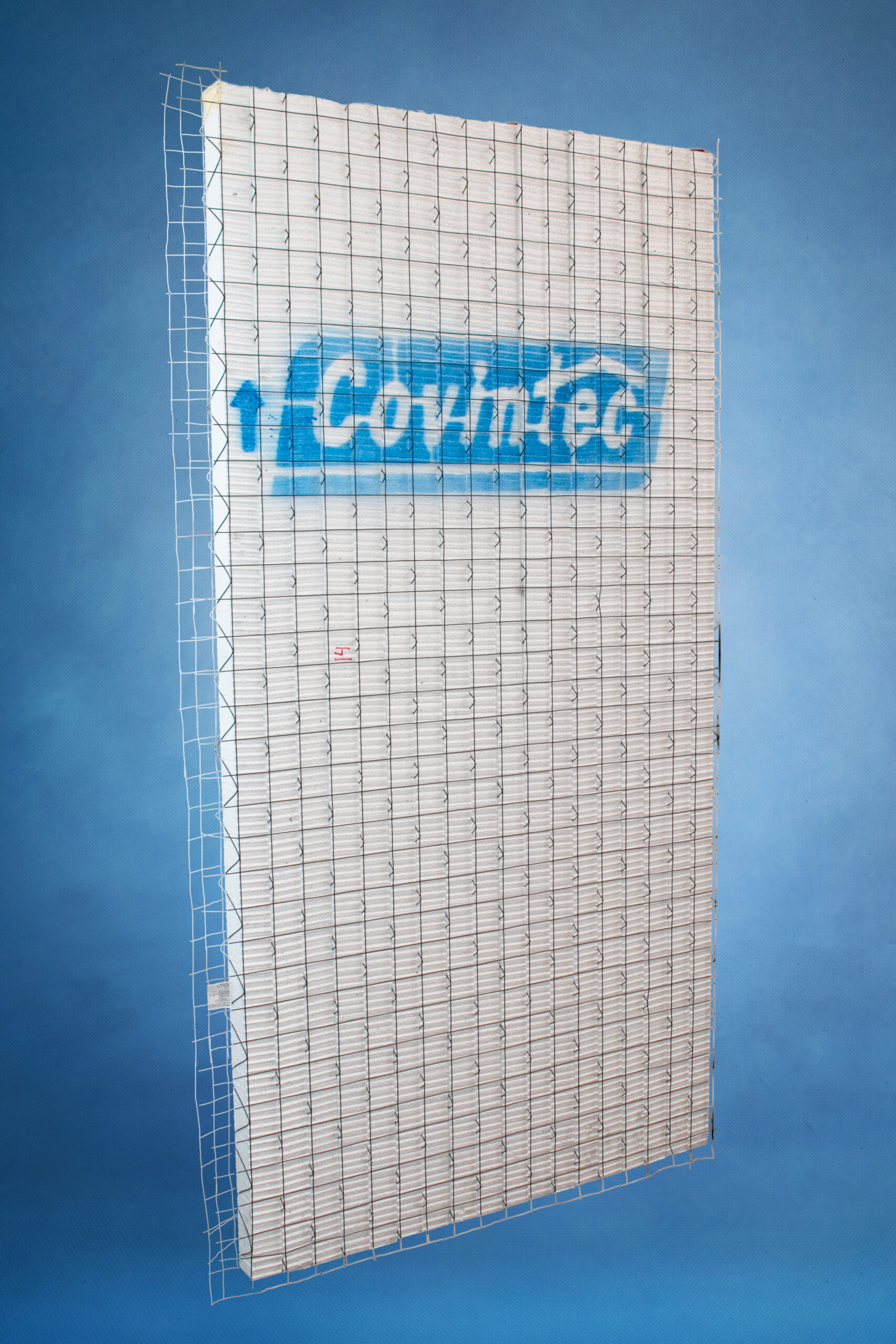

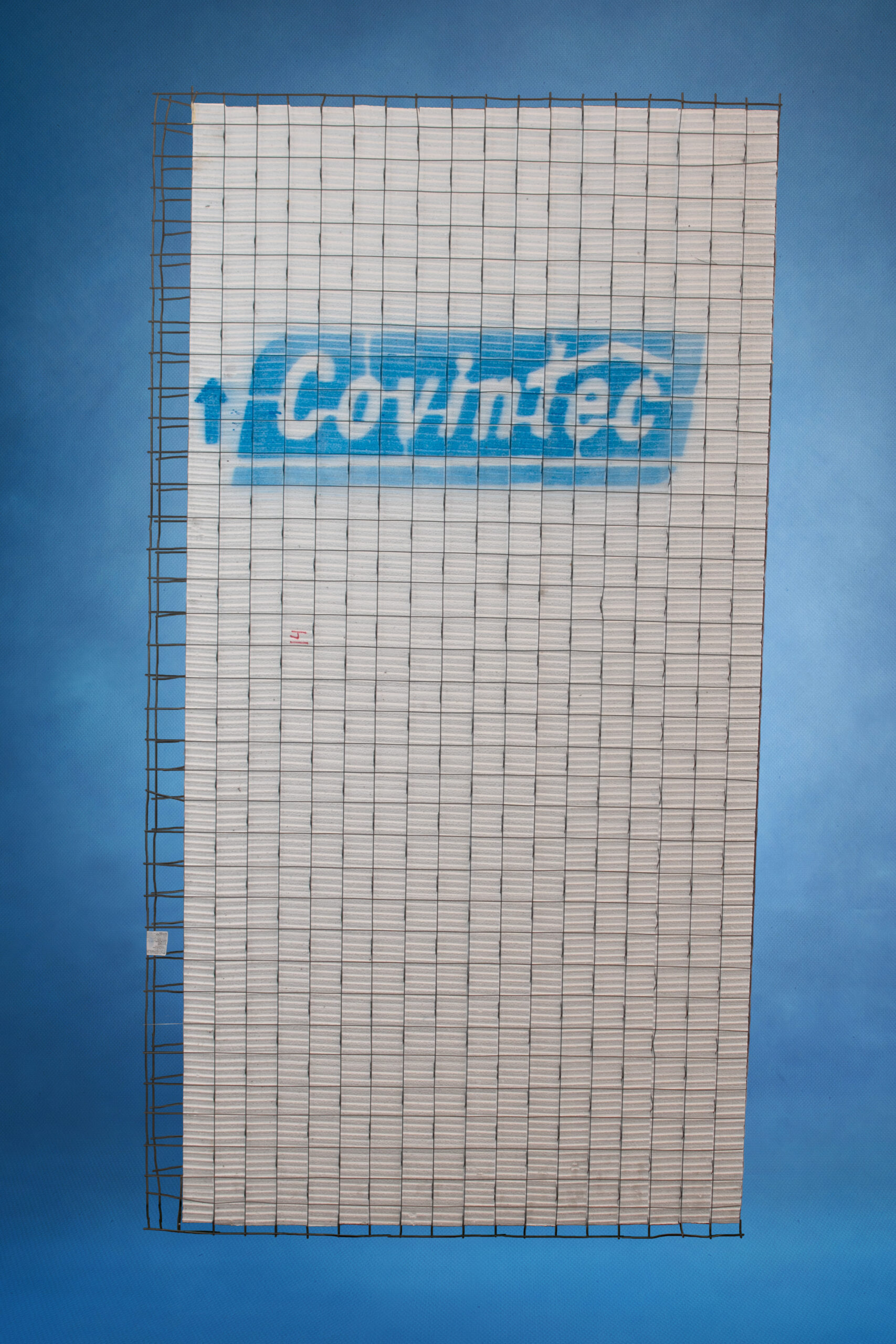

QUALYPANEL COVINTEC It is a three-dimensional structure of polished wire or
High strength galvanized steel gauge #14 (2.03 mm), electro welded at each

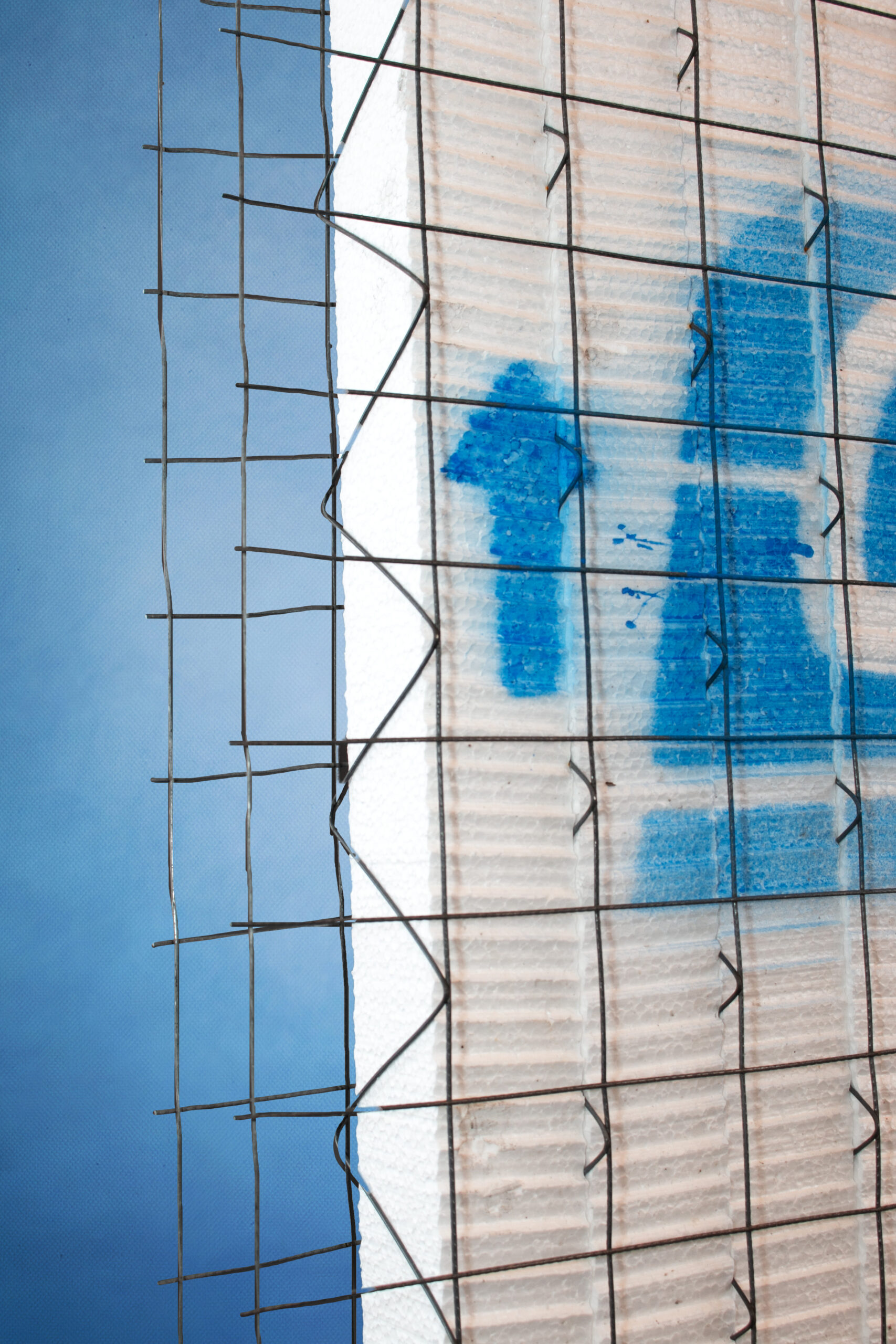

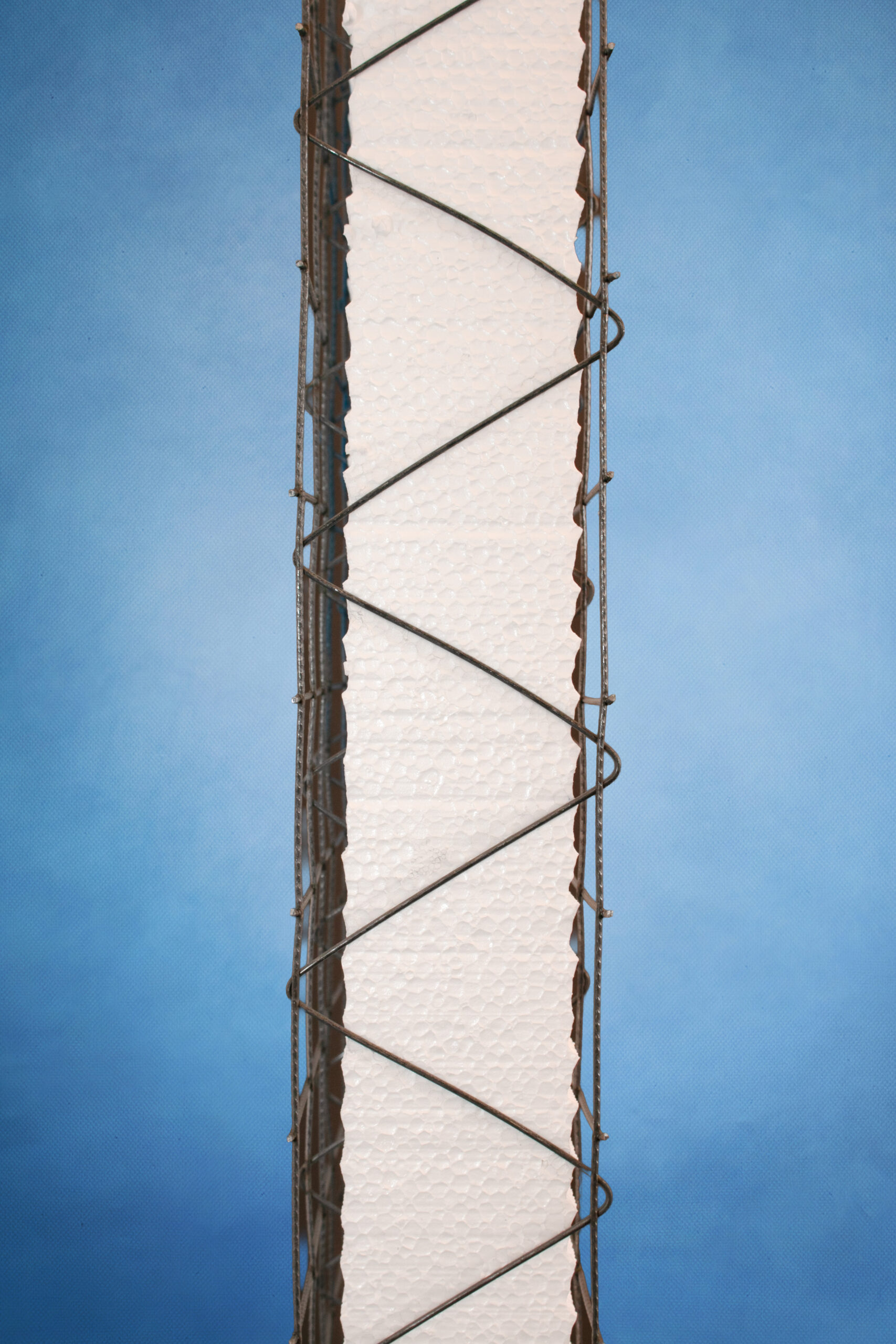

contact point, composed of vertical reinforcements called ladders or
Zig-Zag and inside the reinforcements a core composed of expanded polystyrene is incorporated
.
Dimensions
Espesor: 4″
Broad: 1.22 m
High: 2.44 m
Mesh Separation: 10.16 cm
Reticle 6.7cm x 6.7cm
Unflattened Weight: 2.8 kg/m2
Polystyrene Thickness: 8.00 cm
Steel Caliber: 14
Vertical Steel Area: 1.82 cm2
Horizontal Steel Area: 2.36 cm2
EPS Density: 10 kg/cm3
